Mikroe Mikromedia 5 for STM32 Resistive FPI with Frame

MikroE MIKROE-6132 Mikromedia 5 for STM32 Resistive FPI with Frame implements USB, Wi-Fi®, and RF connectivity options, a digital motion sensor, battery charging functionality, a piezo-buzzer, an SD card reader, an RTC, and much more, expanding its use beyond multimedia.

The MikroE Mikromedia 5 for STM32F4 Resistive FPI with frame has three mikroBUS™ Shuttle connectors, a modern addition to the mikroBUS standard in the form of a 2x 8-pin IDC header with 1.27mm (50mil) pitch. The mikroBUS Shuttle extension board is an add-on board supplied with the conventional mikroBUS socket, which provides compatibility with 894 Click boards™.

Features

  • STM32F407VGT6 MCU
  • Solomon Systech SSD1963 graphics driver IC
  • Accelerator
  • Wi-Fi
  • RF
  • Battery for RTC
  • Battery charging when OFF
  • Battery powered
  • External DC source
  • MP3
  • ON/OFF switch
  • SD Card
  • USB host
  • USB Type-C™
  • ARM (32-bit) architecture
  • 5" Display size
  • 800px x 480px resolution
  • SSD1963 graphic controller
  • Resistive touch screen
  • 3.3V input voltage

Overview

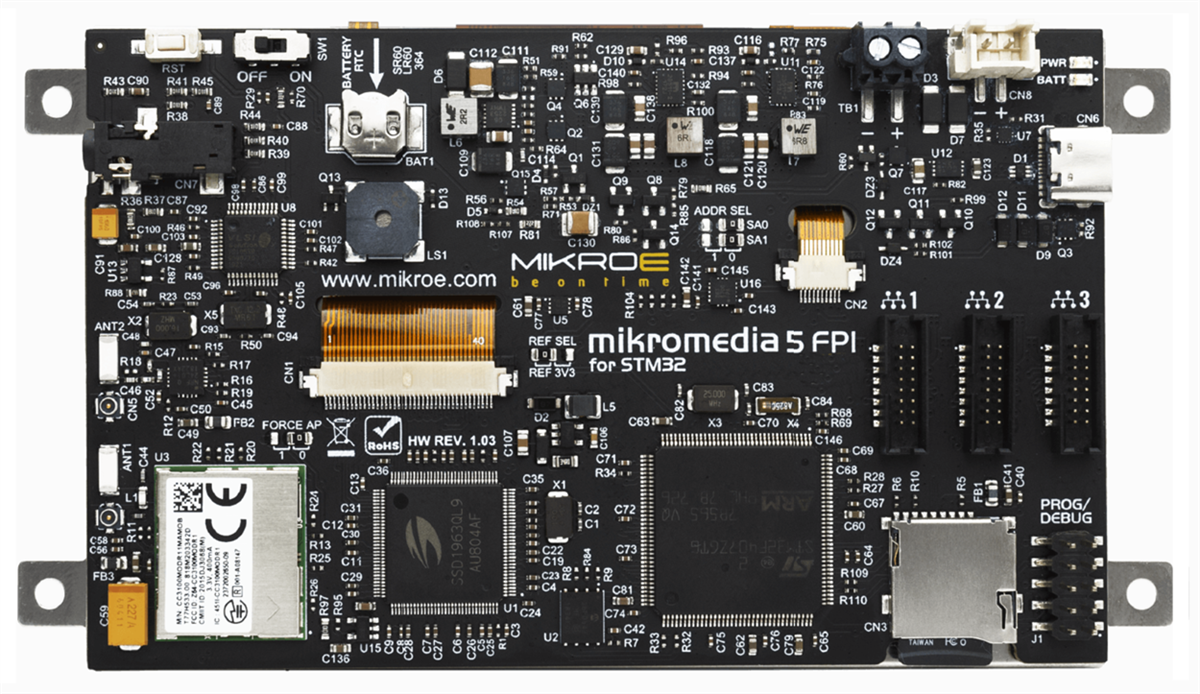

Mikroe Mikromedia 5 for STM32 Resistive FPI with Frame
