MEAN WELL EPP-120S Open-Frame Power Supplies

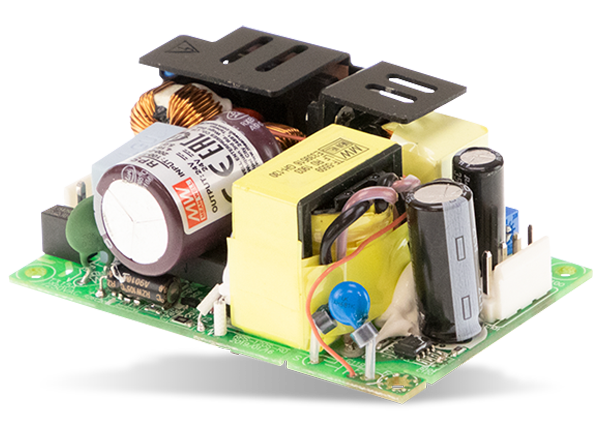

MEAN WELL EPP-120S Open-Frame Power Supplies are 120W, highly-reliable, PCB-type, miniature power supplies with a 3" x 2" footprint. These power supplies operate within an 80VAC to 264VAC input voltage range and provide an output voltage from 12V to 48V. The EPP-120S power supplies are designed to be used with both Class I (with FG) and Class II (no FG) system designs. These power supplies feature short-circuit, overload, over-voltage, or over-temperature protections. The EPP-120S connectors offer up to 94% efficiency and less than 0.3W no-load power consumption. Typical applications include industrial automation machinery, industrial control systems, mechanical/electrical equipment, electronic instruments, equipment, and apparatus.
Features
- High reliability
- PCB type
- High power density
- RoHS compliant
- Electro-Magnetic Interference (EMI) for both Class I and Class II configuration
- Short-circuit, overload, over-voltage, or over-temperature protections
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment, or apparatus
Specifications
- 3" x 2" compact footprint
- 120W convection and 150W (10s) peak rated power
- Less than 0.3W no-load power consumption
- Up to 94% efficiency
- Up to 5000m operating altitude
- Compliance with ITE (IEC/EN/UL62368) and CB/UL/cUL/TUV/EAC/CE international safety regulations
- -30°C to +85°C operating temperature range
Application Diagram
Block Diagram
Learn More About
MEAN WELL EPS/EPP Series Power Supplies
Single output, compact, low power, high efficiency power supplies with an open frame PCB structure.
