Analog Devices Inc. EVAL-ADCM Evaluation Kit

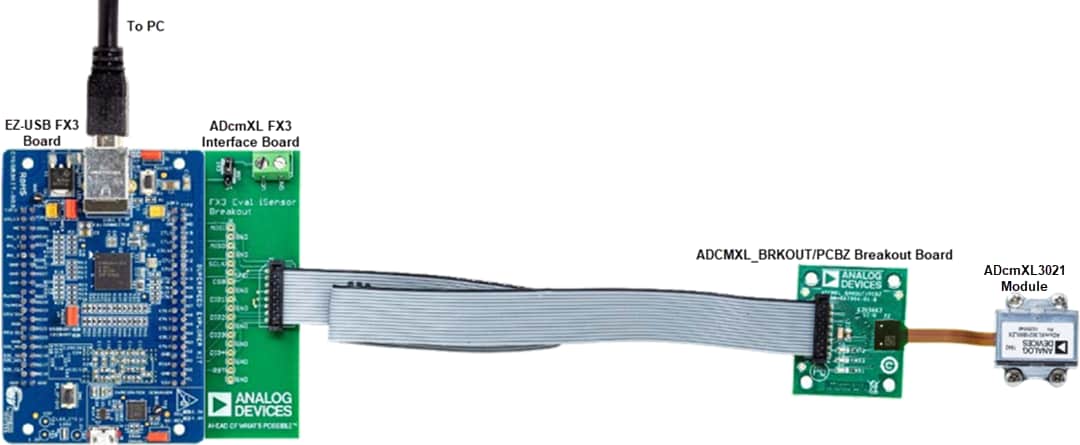

Analog Devices Inc. EVAL-ADCM Evaluation Kit is a demonstration and development platform based on the ADcmXL3021 3-Axis Vibration Sensing Module. The EVAL-ADCM Evaluation Kit includes an ADcmXL3021 Sensor Module, a Breakout Board, an ADcmXL Interface Board, an Infineon Technologies EZ-USB™ FX3™ Board, and the cables to connect them. The Analog Devices EZ-USB FX3 Board allows connection to a PC, enabling users to access evaluation software for effortless configuration of the module, register setup, data display, and data logging.

Features

Enables evaluation of the ADcmXL3021 3-Axis Vibration Sensing Module
Evaluation software enables effortless configuration of the module, register setup, data display, and data logging

Connects to PC for access to Graphics User Interface (GUI)
High-speed SPI to USB adaptor for high data rate Real Time Streaming (RTS)

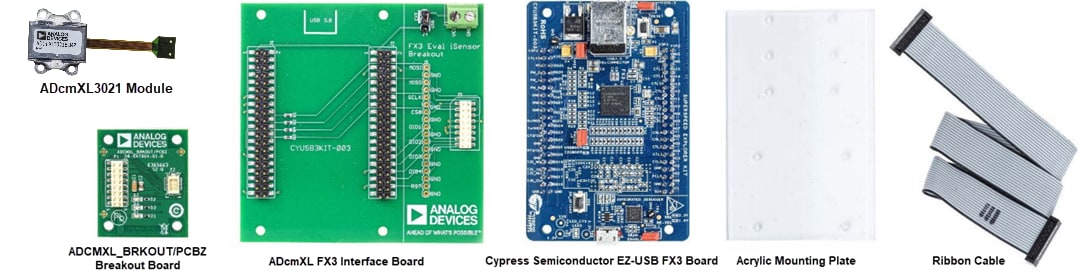

Kit Contents

• ADcmXL3021 Module

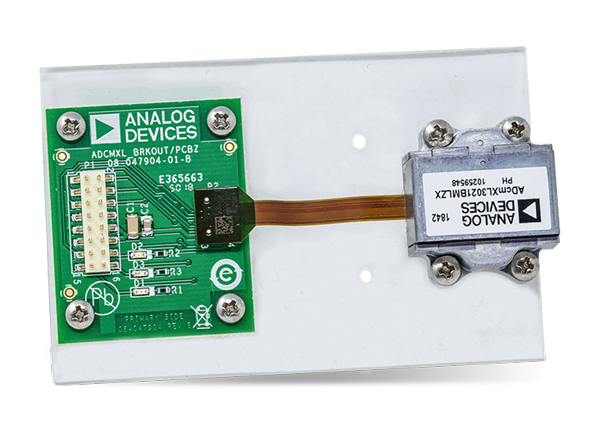

• ADCMXL_BRKOUT/PCBZ Breakout Board
• ADcmXL FX3 Interface Board
• Infineon Technologies EZ-USB™ FX3 Board (CYUSB3KIT-003)
• Acrylic mounting plate (2" x 3")
• 8x Mounting Screws
• 2" Ribbon Cable, 16-pin conductor, 2mm connector pitch (required for RTS Mode communications link)
• 12" Ribbon Cable, 16-pin conductor, 2mm connector pitch
