D2HW-BL271H

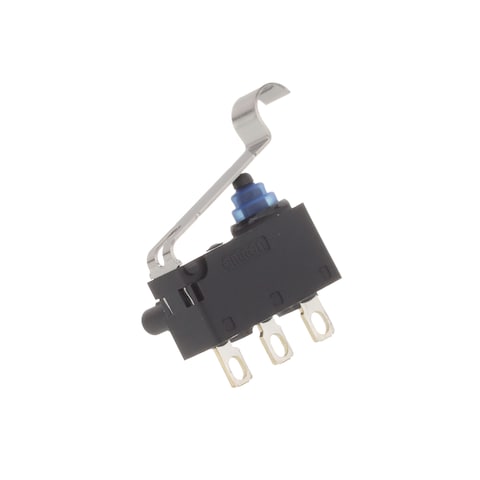

Name: Omron D2HW-BL271H
Brand: Omron Electronics
SKU: 653-D2HW-BL271H
Price: 3.81 SGD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-D2HW-BL271H

Mfr. No:

D2HW-BL271H

Mfr.:

Omron Electronics

Description:

Basic / Snap Action Switches Subminiature Basic Switch

Datasheet:

D2HW-BL271H Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics D2HW-BL271H

In Stock: 225

Stock:: 225 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (SGD)

Qty.	Unit Price	Ext. Price
	$3.81	$3.81
	$3.27	$32.70
	$3.20	$80.00
	$3.13	$156.50
	$3.06	$306.00
	$3.03	$757.50
	$2.59	$12,950.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Basic / Snap Action Switches
RoHS:
Series:	D2HW
Type:	Ultra Subminiature
Contact Form:	SPDT
Switch Function:	ON - (OFF), OFF - (ON)
Actuator:	Simulated Roller Lever
Current Rating:	100 mA, 2 A
Voltage Rating AC:	125 VAC
Voltage Rating DC:	12 VDC
Operating Force:	1.8 N
Termination Style:	Solder Lug
Mounting Style:	Chassis Mount
IP Rating:	IP67
Actuator Style:	Simulated Roller Lever
Brand:	Omron Electronics
Contact Material:	Gold
Illuminated:	Non-Illuminated
Life:	1000000 Operations
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Product Type:	Snap Action Switches
Factory Pack Quantity:	250
Subcategory:	Switches
Part # Aliases:	D2HWBL271HBYOMR
Unit Weight:	700 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CNHTS:: 8536500090
CAHTS:: 8536509040
USHTS:: 8536509040
JPHTS:: 853650090
KRHTS:: 8536509090
TARIC:: 8536508099
BRHTS:: 85365090
ECCN:: EAR99

D2HW Sealed Ultra-Subminiature Basic Switches

Omron D2HW Sealed Ultra-Subminiature Basic Switches feature an extra-long stroke even without levers for reliable ON/OFF action. These small snap-action switches are downsized, offering case dimensions that are 78% of conventional models. The D2HW series is available in a broad range of mounting structures, actuators, and terminals, with an SPDT contact form. Two additional contact forms, SPST-NC and SPST-NO, are also available for the molded lead wire variants. Omron D2HW Sealed Ultra-Subminiature Basic Switches are constructed from environmentally friendly materials and are RoHS compliant. These switches are also lead free, including the molded lead wire models.

Recreational Vehicle Solutions

Omron Electronics manufactures a broad selection of reliable and durable components for recreational vehicle solutions. The product lineup includes relays and switches skillfully engineered to withstand the harsh conditions of recreational vehicle applications. The relays are small and designed to run off 12V or 24V battery systems typically used in small mobility vehicles. The relays also offer load support and high inrush capability for motors and lighting applications. The sealed micro switches are ideal for areas with water spray or excessive dust (IP67 rated). The switches are available in a variety of contact ratings, terminals, levers, and mounting styles. The Omron recreational vehicle product lineup can be used for detection applications such as seating detection, security components like headlamps and flashers, and battery power distribution, including DC high-voltage emergency shutoff.
