46055-0007

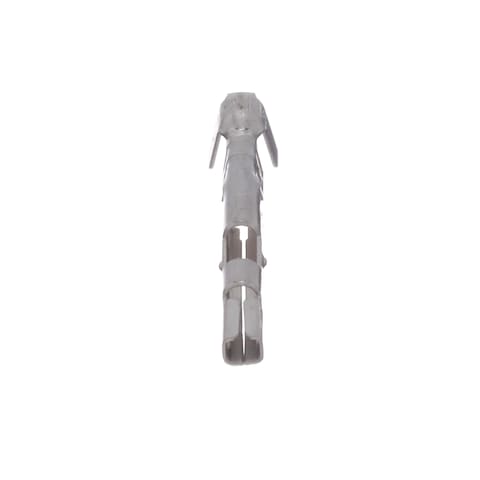

Name: Molex 46055-0007
Brand: Molex
SKU: 538-46055-0007
Price: 0.25 SGD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-46055-0007

Mfr. No:

46055-0007

Mfr.:

Molex

Description:

Headers & Wire Housings MINIFIT H20 F TERM TIN 18-24AWG LOOSE

Lifecycle:

End of Life:

Scheduled for obsolescence and will be discontinued by the manufacturer.

Datasheet:

46055-0007 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 7,780

Stock:: 7,780 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 7780 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (SGD)

Qty.	Unit Price	Ext. Price
	$0.25	$0.25
	$0.214	$2.14
	$0.203	$5.08
	$0.136	$1,632.00
	$0.133	$3,192.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Contacts
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	46055
Tradename:	Mini-Fit H2O
Application:	Wire-to-Wire, Power
Wire Gauge:	20 AWG to 18 AWG
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Molex
Contact Material:	Copper Alloy
Current Rating:	9 A
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	6000
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 V
Part # Aliases:	0460550007
Unit Weight:	147 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8538900000
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 8536900002
KRHTS:: 8536909010
TARIC:: 8536699099
MXHTS:: 85369099
BRHTS:: 85369090
ECCN:: EAR99

Molex Mini-Fit® Connectors

Molex Mini-Fit® Family offers design flexibility for wire-to-wire, wire-to-board and board-to-board configurations in high current, high density applications. Features of the Molex Mini-Fit Family include fully isolated contacts, positive housing locks, low engagement forces, and polarized headers. The Mini-Fit connectors are available in single-row or dual-row with 2- to 24-circuits and multiple plating options. Designed with a rated voltage of 600V, the Molex Mini-Fit connectors are ideally suited for power applications in the security, computer, and medical industries.
